Coffee beans loader
HOME- Coffee Roaster
- Option
- Coffee beans loader
본문
POWER
1Phase 220V 1~4kW/h
WORK CAPACITY
5~35 Liter
WORKING TIME
5~25sec
-
-

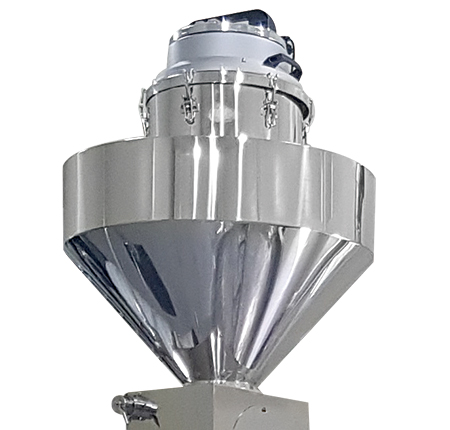

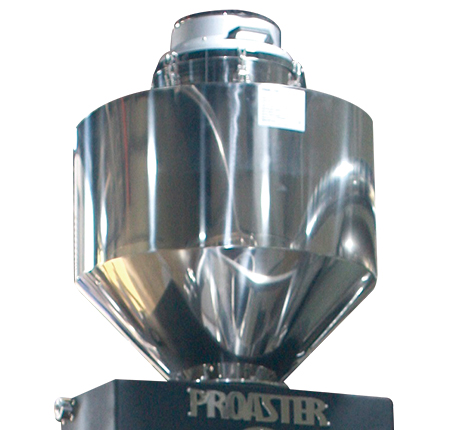

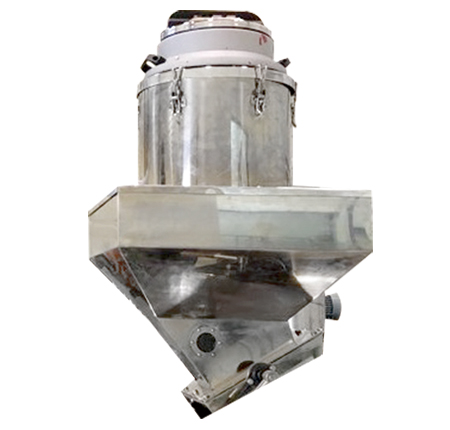

Vacuum Loader Principle
This vacuum transfer device transfers the raw material of the powder or particle in the suction port to the main body sucked together with the air due to the vacuum generated by the vacuum inhale motor which is connected to the upper portion of the main body and difference of pressure between the suction pipe outlet and inside of the main body. The transferred material is vacuum destroyed, and at the same time, the discharge port at the lower part of the main body is opened and allows free fall of conveyed material.
Vacuum Loader Feature
Leakage of the conveyed powder does not occur due to the use of vacuum pressure.
Strong suction power : Achieves high-density and high-weight powder transfer due to high vacuum capacity and strong wind power in proportion to the performance of the vacuum blower.
Filter auto cleaning function : Removes dust on the filter surface to maintain transport efficiency through periodic instantaneous air injection by the built-in compressed air tank.
Convenient disassembly and cleaning : It is convenient to disassemble and clean inside of the container or filter without using specific tool.
Raw material damage minimized : Cyclone structure of conveying machine minimizes impact and abrasion when conveying, minimizing destruction of granular material.
Superior performance of the filter : The maximum filter area is applied and the filter material not allowing leakage of the fine powder is used.
Variety of vacuum generator source : Vacuuming by pneumatic ejector pump integrated with main body, and separate motor driven vacuum blower type transfer is available.
Applicable field:

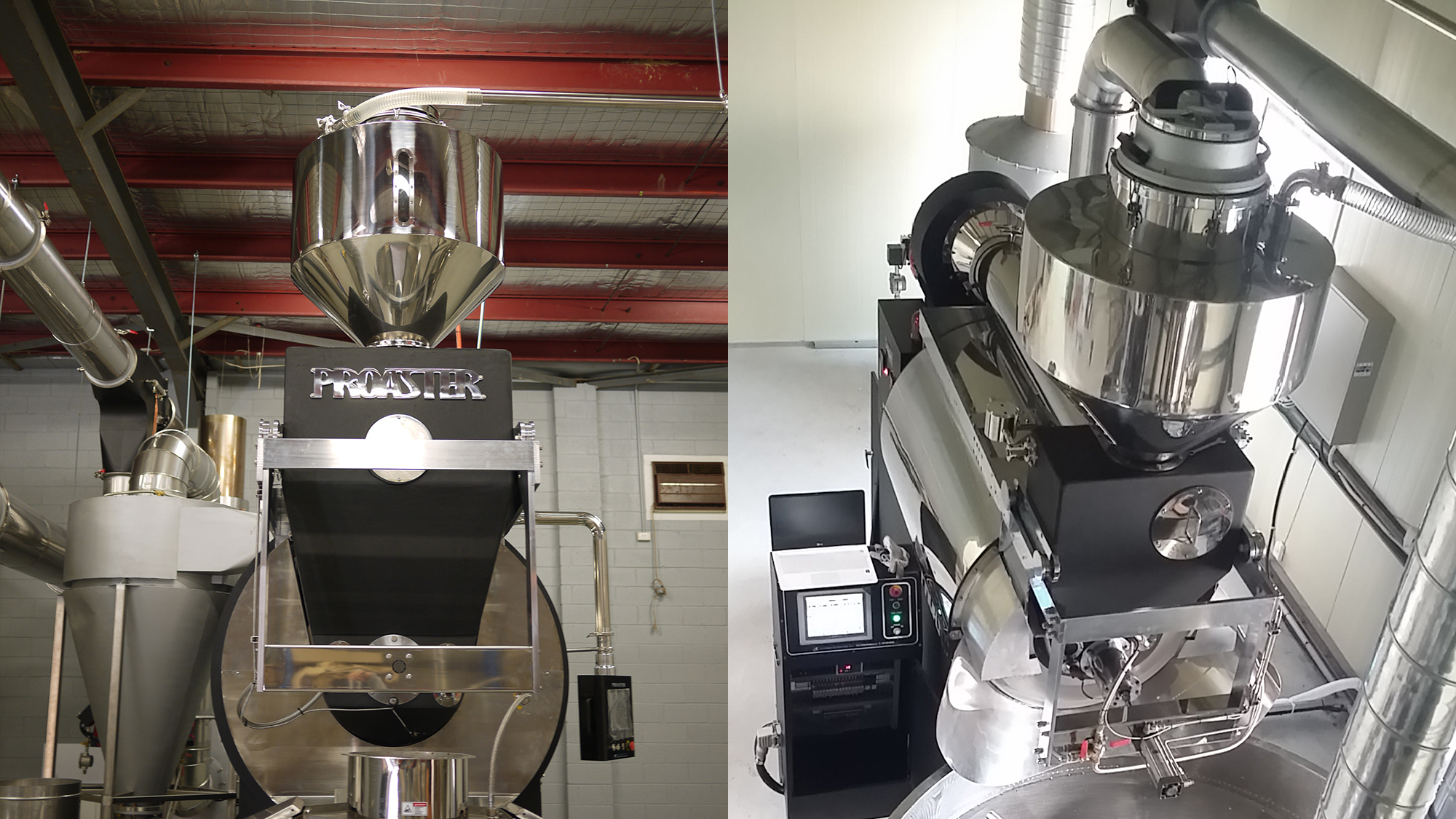

- Green beans load in the coffee processing process
- Grains with specific gravity and hardness similar to coffee beans
- Chemical powder and other raw materials with specific gravity and hardness similar to coffee beans

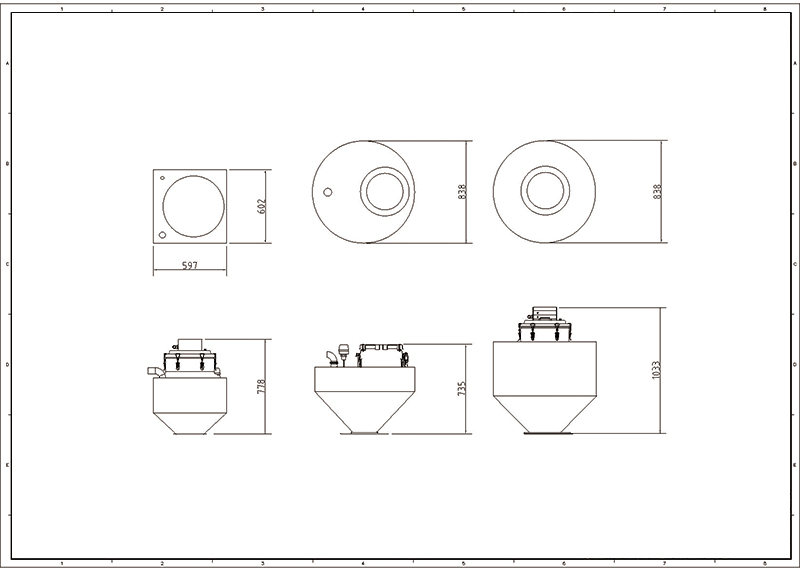

SPECIFICATION Manual
